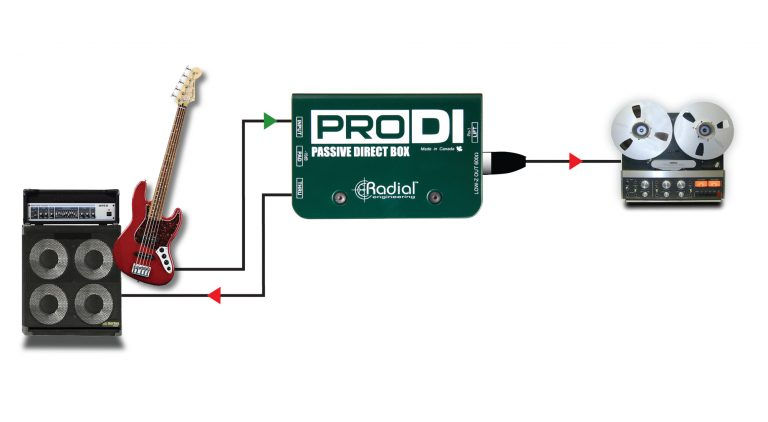

The ProDI is a passive direct box designed for use on stage or in home recording studios, with the ability to handle high output instruments without distortion, and a transformer-isolated output to eliminate noise from ground loops.



  • Compact passive direct box for stage and studio
  • Able to handle huge transients without distortion
  • Transformer isolation eliminates noisy ground loops
  • Plug and play easy to use feature set – on stage or in the studio



World class DI

The heart of the ProDI is a custom wound Radial transformer. It features an exceptionally high 140kΩ input impedance to reduce loading while enabling the ProDI to handle extreme signal levels at all frequencies without distortion. This is further improved upon with an internal MuMETAL® shield to protect against electromagnetic fields that can cause unshielded transformers to distort.

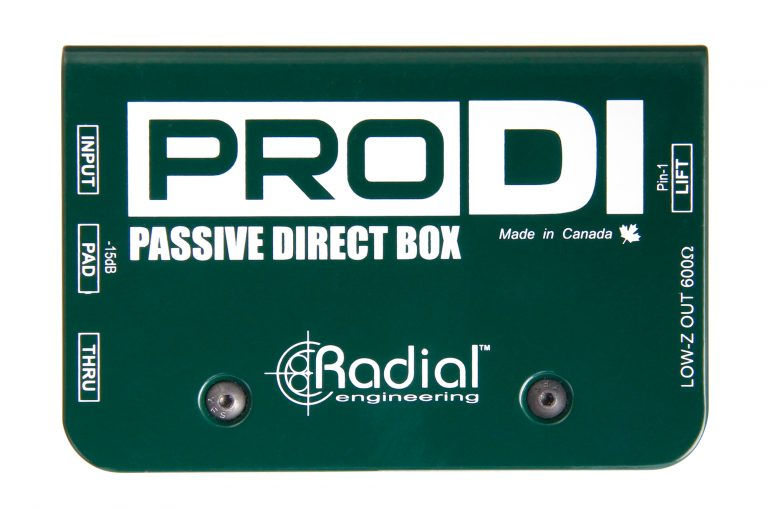

Radial PRO DI Direct Box

SKU: RPDI
$109.99Price
Audio circuit type: Passive, transformer based
Transformer: Eclipse ET-DB2, 12:1 ratio
Number of channels: Single channel (mono)
Frequency response: 20Hz ~ 18.5KHz (± 0.2dB)
Dynamic range: 128dB
Total harmonic distortion: 0.01% from 20Hz~20kHz @-10dB
Phase Deviation: 1° @ 100Hz; 8° @ 20Hz
Input Impedance: 140k Ohms, unbalanced
Output Impedance: 150 Ohms, balanced
Maximum Input: +18dB @ 20Hz
