This comprehensive package gives you the acclaimed U87AI microphone, the classic EA87 shockmount, along with a high-quality windscreen and cable to get you ready for business immediately.
This versatile U87AI condenser features a large dual-diaphragm capsule with three directional patterns-omnidirectional, cardioid and figure-8-that you can select with the flip of a switch. It offers a smooth frequency response with whatever pattern you use, while its 10 dB attenuation switch helps it easily handle sound pressure levels up to 127 dB without distorting. An additional switch lets you reduce low frequency interference and use the mic up close without fear of bottom end boom.
Features
- Variable large diaphragm microphone
- Pressure-gradient transducer with double membrane capsule
- The studio microphone classic
- Three directional characteristics: omni, cardioid, figure-8
- Switchable 10 dB pre-attenuation
- Ideal as main and as support microphone in the most differing recording situations
- EA87 shockmount, windscreen and cable included
- Nickel finish

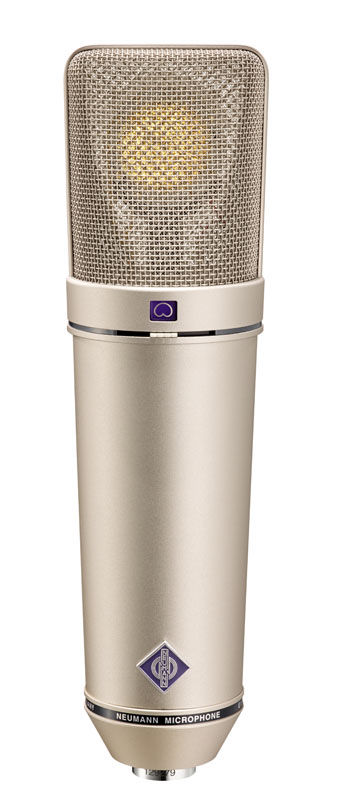

Neumann U87AI SET Z Switchable Microphone
SKU: NEU-USU87AI/SET Z
$3,650.00Price
Specifications
| Acoustical operating principle | Pressure gradient transducer |
| Directional pattern | Omnidirectional, cardioid, figure-8 |
| Frequency range | 20 Hz ... 20 kHz |
| Sensitivity at 1 kHz into 1 kohm | 20/28/22 mV/Pa1) |
| Rated impedance | 200 ohms |
| Rated load impedance | 1 kohms |
| Equivalent noise level, CCIR2) | 26/23/25 dB1) |
| Equivalent noise level, A-weighted2) | 15/12/14 dB-A1) |
| Signal-to-noise ratio, CCIR2) (rel. 94 dB SPL) | 68/71/69 dB1) |
| Signal-to-noise ratio, A-weighted2) (rel. 94 dB SPL) | 79/82/80 dB1) |
| Maximum SPL for THD 0.5%3) | 117 dB (cardioid) |
| Maximum SPL for THD 0.5% with preattenuation3) | 127 dB |
| Maximum output voltage | 390 mV |
| Supply voltage (P48, IEC 61938) | 48 V ± 4 V |
| Current consumption (P48, IEC 61938) | 0.8 mA |
| Matching connectors | XLR3F |
| Weight | 500 g |
| Diameter | 56 mm |
| Length | 200 mm |
